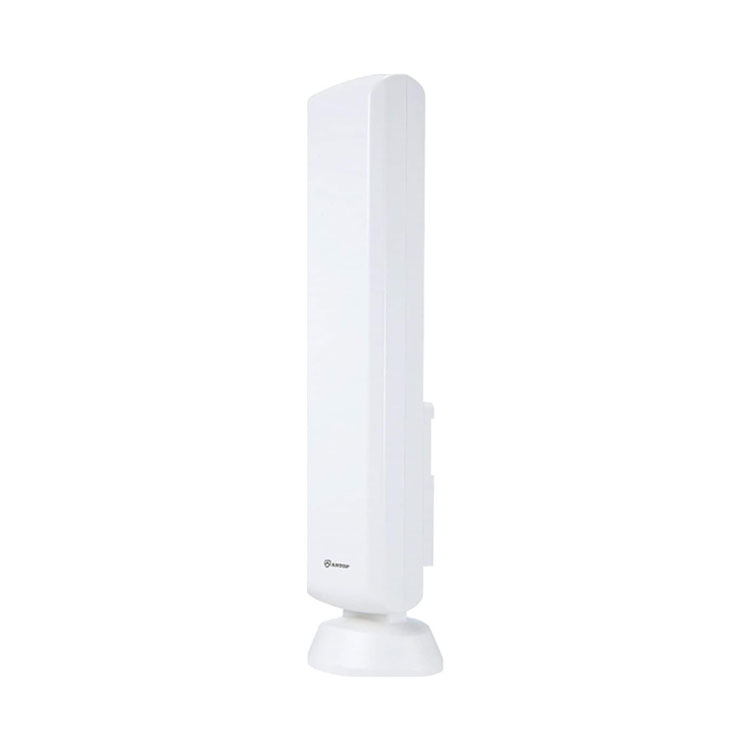

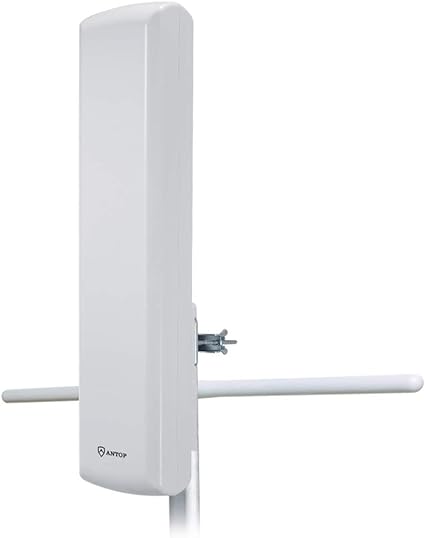

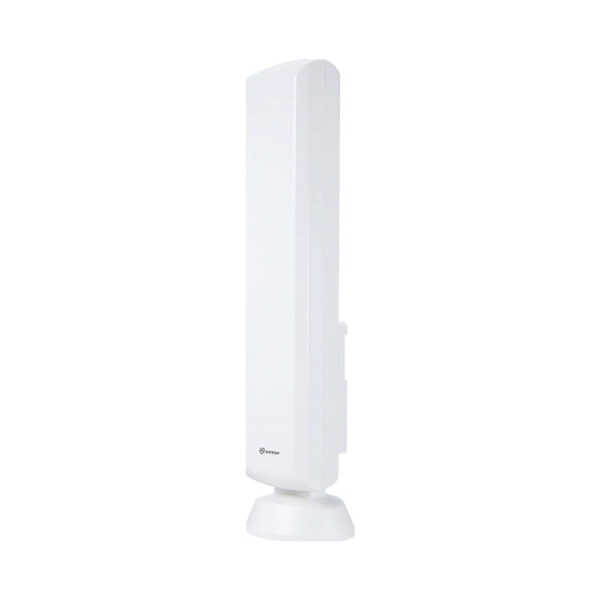

ANTOP “BIG BOY” OUTDOOR HDTV ANTENNA, SMARTPASS AMPLIFIED | AT-402B

SKU: HAT402B

“Big Boy” Outdoor Hdtv Antenna, Smartpass Amplified
Brand: ANTOP ANTENNA
Color: White
Supports VHF & UHF digital signals
Impedance: 75 Ohm
Maximum Range: 60-70 miles
High Gain reception,
Built-in 4G LTE Filter,
Smartpass Amplifier System
Weight: 4.8 pounds (2.18 kg)
UV-resistant and waterproof exterior
Mounting Kit Included
40ft Coaxial Cable Included
AC/DC Power Adapter Included
Power Inserter with Smart Switch Included
Suitable for indoor, outdoor, and mobile use
Frequency Range: 87.5-230MHz (VHF), 470-700MHz (UHF)
Dimensions: 4.53 x 5.12 x 23.82 inches (11.51 x 13.00 x 60.50 cm)

Original price:
~~SRD 2,478.52~~
Online price:
SRD 1,490.10
(incl BTW SRD 1,639.11)

Temporarily Out of Stock

17 People watching this product now!

Payment Methods:

Description

ANTOP “BIG BOY” OUTDOOR HDTV ANTENNA, SMARTPASS AMPLIFIED

Cut the cord, watch Free local TV with the AT-402BV Big Boy Outdoor HDTV Smart pass Amplified Antenna, a whole-house solution from Antop Antenna! The AT-402BV is full enough to feed multiple TVs and is engineered with a patented design to match performance of traditional mechanical antennas. The AT-402BV includes VHF enhancer rods, the exclusive Antop Antenna Smart pass Amplifier, and a 4G LTE Filter. The AT-402BV features an amplified signal reception range of up to 75 miles and multi-directional reception to receive free local over-the-air digital TV signals from networks such as ABC, CBS, NBC, Fox, Univision, and others. It supports HDTV, 1080P TV, 4K Ultra, and is compatible with digital converter boxes.

Redesigned to match similar gain of traditional bulky, unsightly mechanical antennas, the AT-402B with multi-direction, High Gain reception and Smartpass Technology amplifies your range, from 0, 60 and 70 miles from broadcast origination source! Assuring you more channel reception and less blind spots.

FEATURES:

Digital technology allows High Gain reception
Built in 4G LTE Filter blocks unwanted 3G/4G interference
Smartpass Amplifier System, for balanced short & long range reception
Quick & Easy Install, Set-Up
Perfect for indoor, outdoor & mobile use

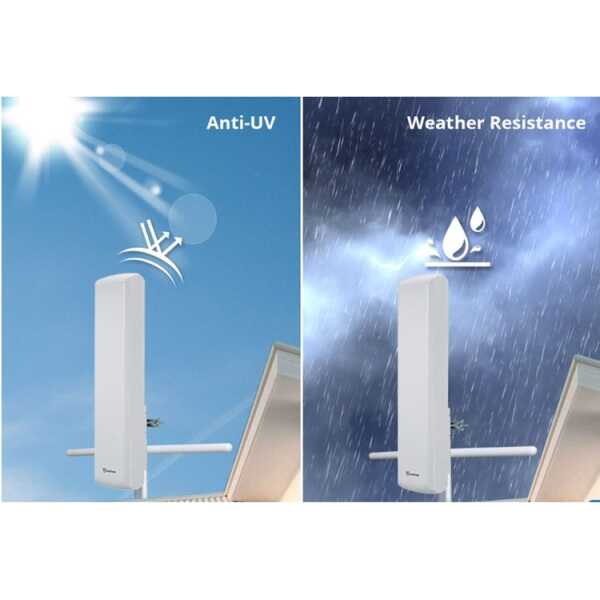

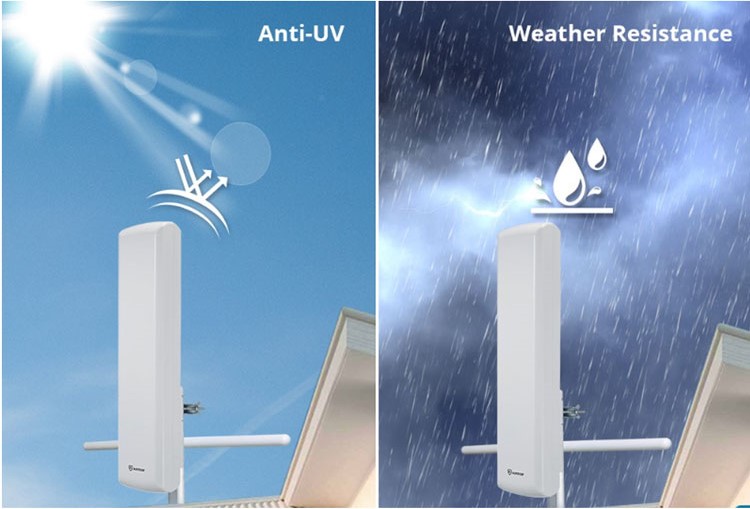

Sleek durable design, anti UV & waterproof exterior

SMARTPASS AMPLIFIER SYSTERM

No hesitation any more on deciding between a short range and long range antenna! ANTOP’s Smartpass Amplifier System, an exclusive technology offered only by ANTOP, uses an all-in-one design to allow an easier connection and more possibilities in different receiving ranges.
– Switch-off: Yellow light indicates short range reception
– Switch-on: Green light indicates long range reception

4G/LTE FILTER

ANTOP was the first antenna manufacturer to include a built in filter to block 3G and 4G wireless signals to ensure noise-free digital TV reception.

Antenna Effectiveness

Obstacles such as trees, buildings, and mountains can impact an antenna’s performance.
Position the antenna to face broadcast tower, in a location as high as possible, with a clear path as possible between the antenna and broadcasting towers.

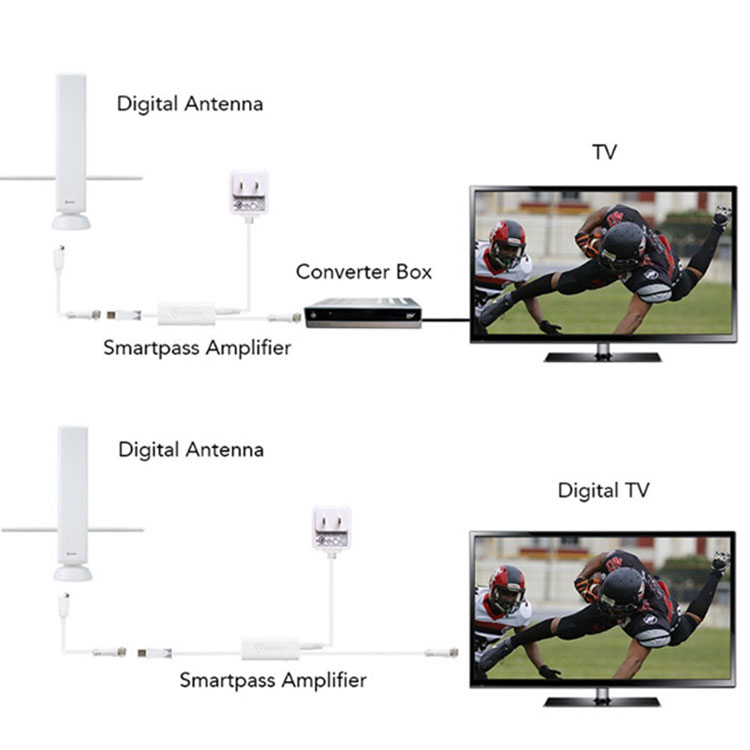

Quick & Easy Set-up

1) Connect the coaxial cable with the antenna and Power Inserter.
2) Plug the other end of Power Inserter into a TV.
3) Connect the Power Inserter to power.
4) Switch the Power Inserter Off->Adjust the antenna positioning-> scan the channels.
5) Switch the Power Inserter On->Adjust the antenna positioning-> scan the channels
6) Enjoy your TV shows.
NOTE: The antenna can work as passive if to exclude the Power Inserter in connection. The antenna must be powered for function on amplifier!

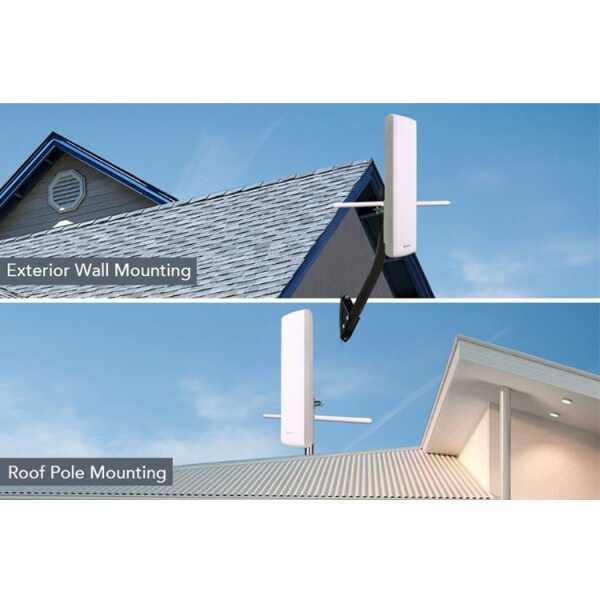

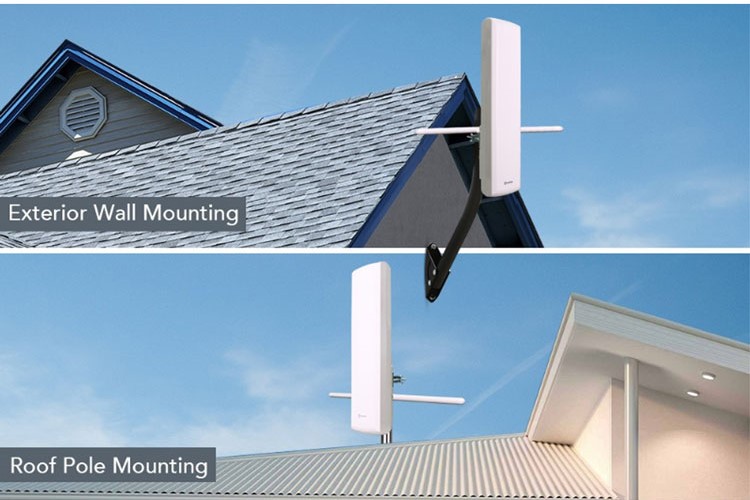

Multiple Installation Options

Full mounting kit included for easy installation.

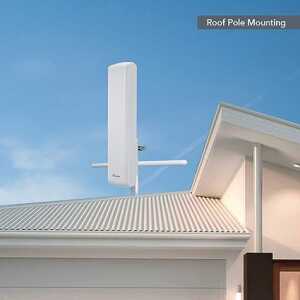

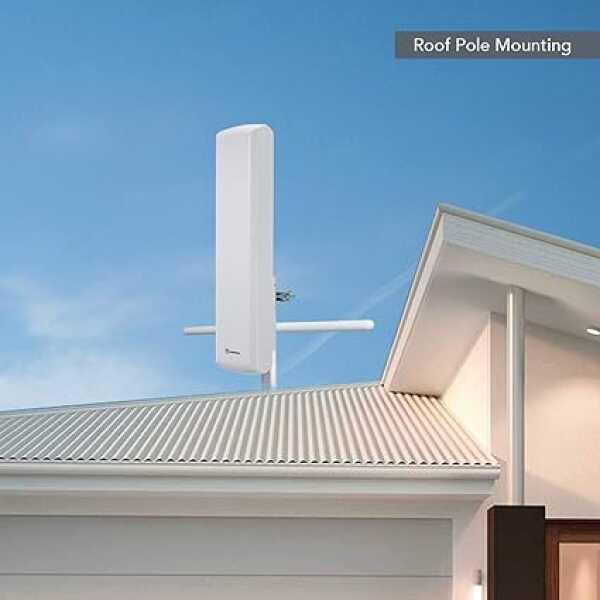

1) Roof top
2) Balcony

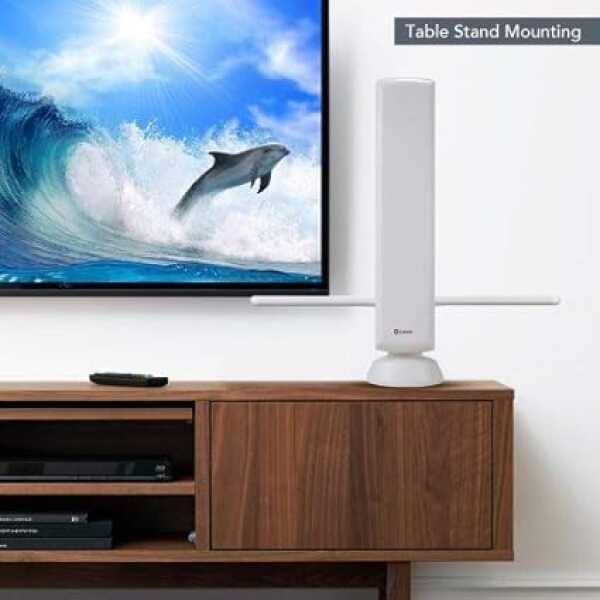

3) Table standing

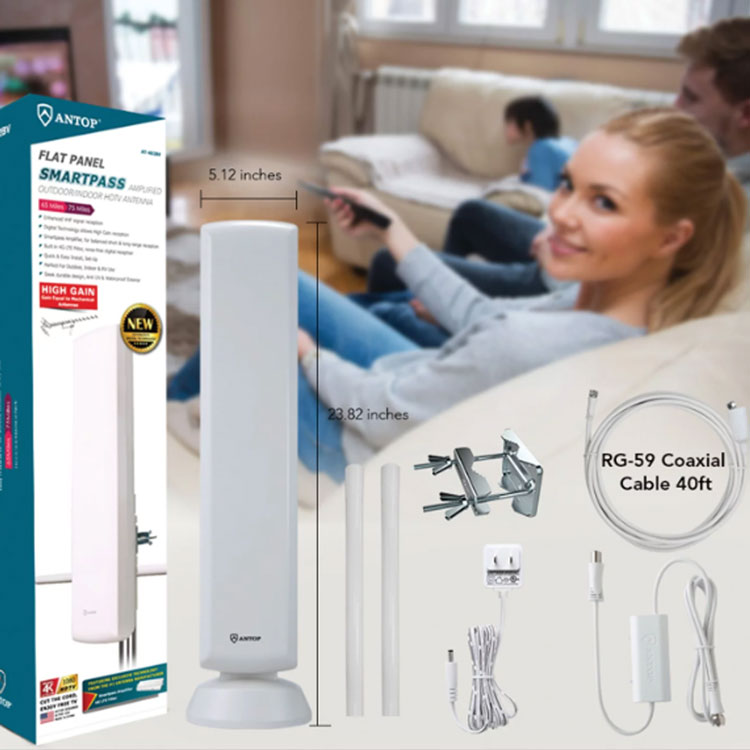

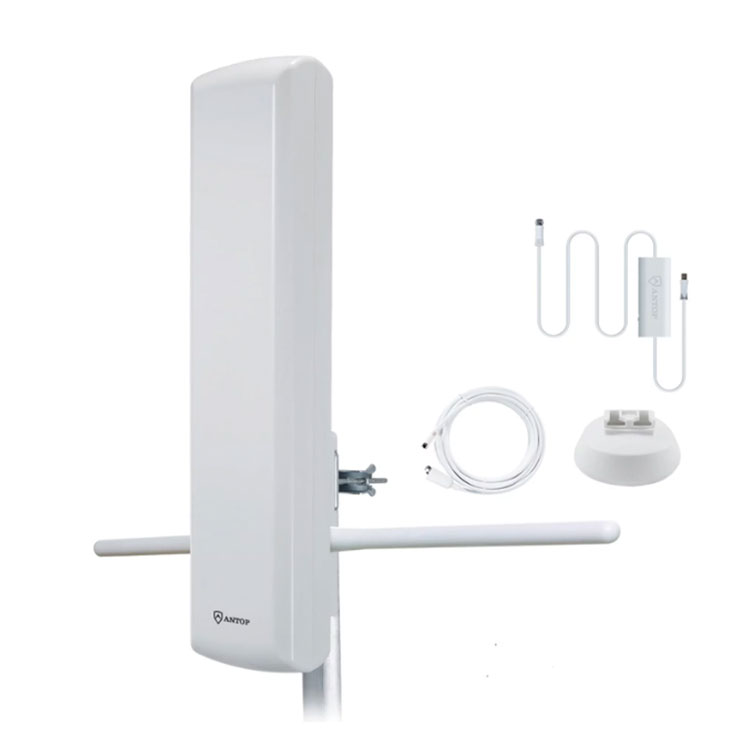

WHAT’S IN THE BOX
1) Antenna
2) Power Inserter with Smart Switch
3) AC/DC Power Adapter
4) Indoor Stand
5) 40ft Coaxial Cable (1 pcs)
6) Pole Mounting Kit
7) Instruction/User Manual
8) Instrucciones de Instalación en Español

CLICK HERE FOR MORE TV ACCESSORIES

Product Specifications

Feature	Details
Brand	Antop Antenna
Model	AT-402B
Color	White
Number of Channels	4
Impedance	75 Ohm
Maximum Range	60-70 Miles
Frequency Range	87.5-230MHz, 470-700MHz
Receiving Range	VHF/UHF
Gain	12.5dB (non-amplified), 29dB (amplified)
Max Output level	100dBuV
Noise figure	≤2.5dB
Reception Pattern	Multi-directional
Polarization	Horizontal/Vertical
Smart Switch	Off: non-amplified, On: amplified with DC 12V via power adapter
Features	Built-in 4G LTE Filter
	Smartpass Amplifier System
	UV-resistant and Waterproof Design
	Suitable for Indoor/Outdoor use
	Quick and Easy Installation
Cable Length	40ft (1219.2 cm)
Weight	4.8 pounds (2.17 kg)
Dimensions	11.51 x 13 x 60.5 cm (4.53” x 5.12” x 23.82”)
