Type

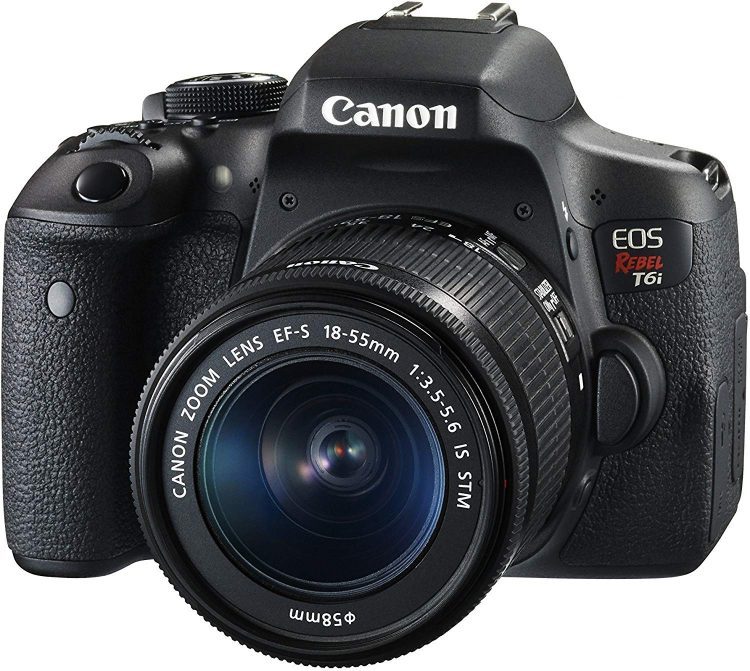

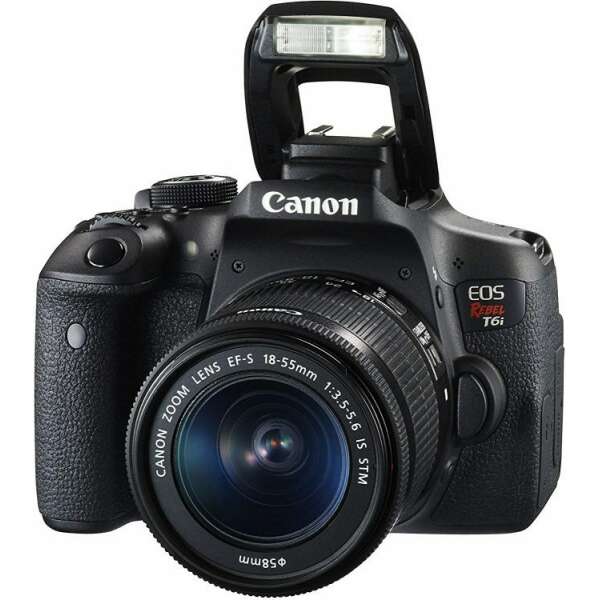

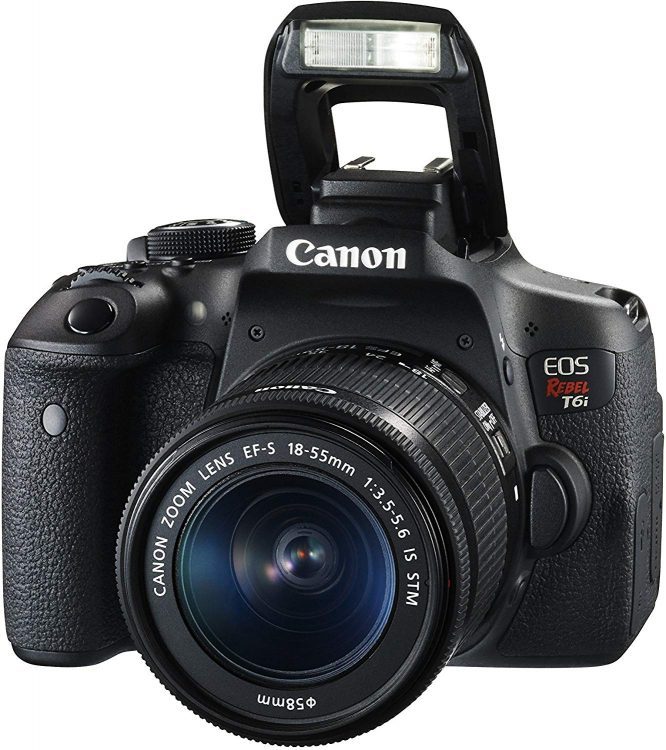

• Type Digital, AF/AE single-lens reflex camera with built-in flash Recording Media SD, SDHC and SDXC Memory Cards
• Not compliant to UHS-I (Ultra High Speed) standards. Compatible with Eye-Fi Cards. Multimedia cards (MMC) cannot be used. (A card error will be displayed.)
• Image Format Approx. 22.3mm x 14.9mm
• Compatible Lenses Canon EF Lenses (including EF-S lenses, excluding EF-M lenses) Lens Mount Canon EF mount

Image Sensor

• Type CMOS Sensor
• Pixels Effective pixels: Approx. 18.00 megapixels
• Total pixels: Approx. 18.70 megapixels
• Pixel Unit Approx. 4.30 µm square
• Aspect Ratio 3:2 (Horizontal : Vertical)
• Color Filter System RGB primary color filters
• Low Pass Filter Fixed position in front of the image sensor
• Dust Deletion Feature:

1. Dust Delete Data acquisition and appending o The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images. o The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots. 2. Manual cleaning o Self Cleaning Sensor Unit not provided. Recording System

• Recording Format Design Rule for Camera File System 2.0 and EXIF 2.3
• File Size Large: Approx. 17.90 Megapixels (5184 x 3456), Medium: Approx. 8.00 Megapixels (3456 x 2304), Small 1: Approx. 4.50 Megapixels (2592 x 1728), Small 2: Approx. 2.50 Megapixels (1920 x 1280), Small 3: Approx. 0.35 Megapixels (720 x 480), RAW: Approx. 17.90 Megapixels (5184 x 3456)
• Backup Recording N/A
• File Numbering:  The following three types of file numbering method can be set: 1. Continuous numbering o The numbering of captured images will continue even after you replace the card. (The numbering continues even when the folder changes.) 2. Auto reset o When you replace the card, the numbering will be reset to start from 0001. If the new card already contains images, the numbering will continue from the last recorded image in the card. 3. Manual reset o Rest the file number to 0001, and creates a new folder automatically.
• Color Space sRGB, Adobe RGB
• Picture Style  1. Auto 2. Standard 3. Portrait 4. Landscape 5. Neutral 6. Faithful 7. Monochrome 8. User Defined 1-3 a. In Basic Zone modes, Auto is set automatically. b. In Creative Zone modes, you can select and set the Picture Style. c. Default settings for [User Defined 1-3] are [Auto].

White Balance

• Auto White Balance Auto white balance with the image sensor
• Color Temperature Compensation Blue/amber bias: ±9 levels
• Magenta/green bias: ±9 levels Corrected in reference to the current WB mode's color temperature.
• Color Temperature Information Transmission Provided

Viewfinder

• Type Eye-level single lens reflex (with fixed pentamirror)
• Coverage Approx. 95% vertically and horizontally (with Eye point approx. 21mm)
• Magnification Approx. 0.8x / 22.4° (-1m-1 (dpt) with 50mm lens at infinity)
• Eye Point Approx. 21 mm (At -1m-1 from the eyepiece lens center)
• Dioptric Adjustment Correction Adjustable from approx. -2.5 to +0.5 m-1 (dpt) Focusing Screen Fixed
• Mirror Quick-return half mirror (Transmittance: reflectance ratio of 40:60)
• Viewfinder Information:  1. AF information (AF points and focus confirmation), 2. Exposure information (Shutter speed, aperture, ISO speed, AE lock, Exposure level, exposure warning), 3. Flash information (Flash ready, flash exposure compensation, high-speed sync, FE lock, red-eye reduction light), 4. Image information (Highlight tone priority, Monochrome shooting, maximum burst, white balance correction, SD card information)
• Depth Of Field Preview Enabled with Custom Function

Autofocus

• Type TTL secondary image-forming phase-difference detection system with AF-dedicated CMOS sensor
• AF Points
• 9 points Cross-type AF sensitive to f/5.6 with center AF point
• AF Working Range, With One-Shot AF, EV 0-18 (center AF point), EV 1-18 (other AF points)
• (at room temperature and ISO 100, based on Canon's testing standards)
• Focusing Modes:

1. Autofocus i. One-Shot AF ii. Predictive AI Servo AF iii. AI Focus AF  Switches between One-Shot AF and AI Servo AF automatically. 2. Manual focus AF Point Selection 1. Manual selection 2. Auto selection o AF point selection for Basic Zone modes is fixed to Automatic selection. Selected AF Point Display Indicated by superimposed display in the viewfinder and on the LCD monitor. AF Assist Beam Intermittent firing of built-in flash Effective range: Center: Approx. 13.1 ft. / 4.0m Periphery: Approx. 11.5 ft. / 3.5m With an EOS-dedicated Speedlite attached, the Speedlite's AF-assist beam is emitted instead. Exposure Control Metering Modes Dual-layer metering sensor with the area divided into 63 zones. 1. Evaluative metering (linked to all AF points) 2. Partial metering at the center of the viewfinder (approx. 10% of viewfinder) 3. Center-weighted average metering Metering Range EV 1-20 (room temperature, ISO 100, evaluative metering) Exposure Control Systems Creative Zone 1. Program AE (Shiftable) 2. Shutter-priority AE 3. Aperture-priority AE 4. Manual exposure (including bulb) Basic Zone 1. Scene Intelligent Auto (Program AE/non-shiftable) 2. Flash Off 3. Creative Auto 4. Portrait 5. Landscape 6. Close-up 7. Sports 8. Food 9. Night Portrait AE Lock 1. Auto AE lock o In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved. 2. Manual AE lock o In the P, Tv, Av, and M modes, enabled with the AE lock button. (Press again to update.) o Enabled in all metering modes. Shutter Type Vertical-travel shutter with electronic first-curtain control and mechanical second-curtain control Shutter Speeds 1/4000 to 30 sec., Bulb (Total shutter speed range) X-sync at 1/200 sec. Settable in 1/3- or 1/2-stop increments. Shutter Release Soft-touch electromagnetic release Self Timer 10-sec. or 2-sec. Delay Shutter Lag Time 1. During SW-1 ON, time lag between SW-2 ON and start of exposure: approx. 0.12 sec. 2. Time lag between simultaneous SW-1/SW-2 ON and start of exposure: Approx. 0.24 sec. Built in Flash Type Auto pop-up, retractable, built-in flash in the pentamirror Flash Metering System E-TTL II autoflash (Evaluative, Average), FE lock Guide Number Approx. 30.2 ft./9.2m (at ISO 100) Recycling Time Approx. 2 sec. Flash Coverage Up to approx. 17mm focal length (equivalent to approx. 28mm in 135 format) FE Lock Possible Flash Exposure Compensation Up to ±2 stops in 1/3- or 1/2-stop increments Flash exposure compensation for built-in flash and external Speedlite can be set with the camera. External Speedlite Flash Metering E-TTL II autoflash (evaluative flash metering and average flash metering), FE lock Flash Exposure Compensation ±2 stops in 1/3-stop or 1/2-stop increments Drive System Drive Modes 1. Single shooting 2. Continuous shooting o Max. approx. 3.0 fps o Shutter speed 1/500 sec., Maximum aperture o Continuous shooting speed may become slower depending on the shutter speed, aperture, subject condition, brightness, lens kind, flash use, battery remaining capacity, etc. 3. 10-sec. self-timer 4. 2-sec. self-timer 5. Continuous shooting after 10-sec. self-timer o 2 to 10 shots Continuous Shooting Speed Max. approx. 3.0 fps Live View Functions Metering Modes Evaluative metering (315-zone) AE lock possible. The active metering timer can be changed. Metering Range EV 0-20 (room temperature, ISO 100) Grid Display One of two types of grids can be selected and displayed on the screen. 1. Grid 1:2 vertical and 2 horizontal lines 2. Grid 2:5 vertical and 3 horizontal lines Exposure Simulation Provided Silent Shooting Not provided Video Shooting File Format MOV: Movie: MPEG4 AVC/H.264 * Variable (average) bit rate Audio: Linear PCM File Size [Full HD] 1920 x 1080 (30 fps/24 fps): 340 MB/min. [HD] 1280 x 720 (60 fps): 340 MB/min. [SD] 640 x 480 (30 fps): 90 MB/min. Frame Rates 1920 x 1080 (Full HD): 30 fps (29.97 fps) / 24 fps (23.98 fps) 1280 x 720 (HD): 60 fps (59.94 fps) 640 x 480 (SD): 30 fps (29.97 fps) Focusing 1. Contrast AF 2. Manual focus o Magnify the image by 5x or 10x and focus manually. Exposure Compensation Possible (±3 stops in 1/3-stop increments) LCD Monitor Type TFT color, liquid-crystal monitor Monitor Size 3.0-inch (Screen aspect ratio of 4:3) Approx. 7.5cm diagonal (approx. 6.0cm wide, approx. 4.5cm high) Pixels Approx. 920,000 dots Coverage Approx. 170° vertically and horizontally Brightness Control Adjustable to one of seven levels Coating Not provided Interface Languages 25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese) Playback Display Format 1. Single image display o Basic information o Basic information + image quality / image file number o Shooting information o Histogram display 2. Index display; 4 or 9 images Highlight Alert On the detailed information and histogram displays, highlight areas with no image data will blink. Quick Control Function Items When you press the Quick Control button while shooting images, you can set various functions. The functions that can be set vary depending on whether the shooting mode is viewfinder shooting, Live View shooting or movie shooting. Image Protection and Erase Protection Erase protection can be applied or canceled for a single image, all images in a folder or all images in the card. Erase Erase unprotected image(s) with selection from Single image, Selected images, All images on folder or All images in a card. Direct Printing Compatible Printers PictBridge-compatible and Wi-Fi equipped printers Printable Images RAW and JPEG images compliant to Design rule for Camera File System. Movies cannot be printed. DPOF: Digital Print Order Format DPOF Complies to DPOF Version 1.1 Customization Custom Functions 11 Custom Functions with 33 settings settable with the camera Custom Controls Not Provided Camera User Settings Not Provided My Menu Registration Up to six kinds of function settings can be selected and registered from the Menu options or any of the top-tier menu options of Custom Functions. Interface USB Terminal Hi-Speed USB (USB 2.0) For computer communication and PictBridge For connection with the GPS receiver GP-E2 Video Out Terminal HDMI Type C (Resolution switches automatically) Video output: (Switches automatically to 1, 2, 3 or 4 to suit the TV set.) 1. 1080/60i 2. 1080/50i 3. 480/60p 4. 576/50p Extension System Terminal Compatible with Remote Switch RS-60E3 Gigabit-Ethernet Compatible Canon cameras are not guaranteed to support Eye-Fi card functions, including wireless transfer. In case of an issue with the Eye-Fi card, please consult with the card manufacturer. The use of Eye-Fi cards may not be approved in all regions, or from one region to another; please contact the card manufacturer for status of approval in the country/region of use. Power Source Battery Battery Pack LP-E10 x 1 The camera can be powered by an AC power supply by using the household power outlet accessories (sold separately). Battery Check Automatic battery check when the power switch is turned ON. Battery level indicated in one of the four levels on LCD monitor. Power Saving Power turns off after the set time of non-operation elapses * [Auto power off] settable to 30 sec., 1 min., 2 min., 4 min., 8 min., 15 min. or disable Date/Time Battery Built-in secondary battery Maintains date/time for about 3 months when fully charged Start-up Time Approx. 0.1 sec. (Based on CIPA testing standards) Dimensions and Weight Dimensions (W x H x D) Approx. 5.08 x 3.99 x 3.06 in. / 129.0 x 101.3 x 77.6mmIn CIPA guidelines. Weight Approx. 17.11 oz. / 485g (In accordance with CIPA guidelines)Approx. 15.52 oz. / 440g (Body only) Operating Environment Working Temperature Range 32-104°F/0-40°C Working Humidity Range 85% or less All data are based on Canon's Standard Test Method. Subject to change without notice. If a problem occurs with a non-Canon lens attached to the camera, consult the lens maker. Canon, DIGIC and EOS Rebel are registered trademarks of Canon Inc. in the United States and may also be registered trademarks or trademarks in other countries. Microsoft, Windows and Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Mac is a trademark of Apple, Inc., registered in the United States and other countries. HDMI, the HDMI logo and High-Definition Multimedia Interface are registered trademarks or trademarks of HDMI Licensing, LLC in the United States and/or other countries. All other products and brand names are registered trademarks, trademarks or service marks of their respective owners in the United States and/or other countries.
