LEO APSM60 SELF-PRIMING PERIPHERAL PUMP 0.5 HP | APSM37

LEO APSM60 SELF-PRIMING PERIPHERAL PUMP 0.5 HP | APSM37

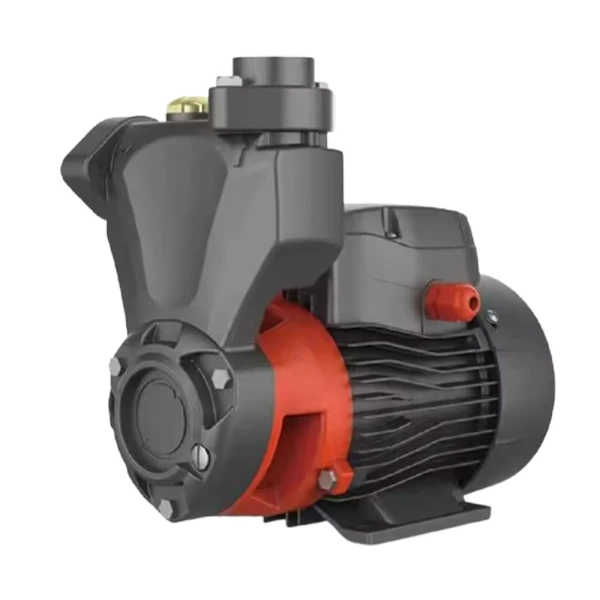

The Leo APSM60 Self-Priming Peripheral Pump 0.5 HP (also known as APSM37) is an advanced, high-performance water pump designed to efficiently transfer liquids in various applications. Whether for domestic or light commercial use, this pump delivers exceptional reliability, efficiency, and durability. The key features and specifications of the APSM60 ensure that it meets the demands of both residential and industrial water systems.

Pump Overview

This water pump operates at a voltage of 115-127V with a frequency of 60Hz, which is standard for many domestic and industrial water systems in various countries. With a power rating of 0.5 horsepower (HP), it delivers ample pressure and flow, making it ideal for applications such as water supply, irrigation, and transfer of non-corrosive liquids.

One of the standout features of the APSM60 is its self-priming ability, which means it can draw water into the pump even when there is air in the system, making it extremely easy to start. This feature eliminates the need for manual priming and ensures that the pump can be set up quickly and efficiently, saving valuable time in the process. The pump’s max suction height is 8 meters, which means it can lift water from a considerable depth, enhancing its versatility in various installations.

Construction and Durability

The Leo APSM60 is engineered with durability in mind. The pump features a brass impeller, which ensures superior performance, corrosion resistance, and long-term durability. Brass impellers are known for their ability to resist wear and tear, even in harsh environments, ensuring that the pump performs efficiently over time.

The AISI 304 stainless steel shaft enhances the overall durability of the pump, providing exceptional resistance to corrosion and oxidation. This is particularly important in applications involving water or other liquids that can cause rust and degradation over time. The shaft’s high-quality construction ensures smooth operation, reducing the risk of motor failure and prolonging the life of the pump.

The cast iron pump body and support are treated with a special anti-rust coating, which further increases the pump’s resilience against corrosion and environmental factors. This means the APSM60 is capable of handling demanding conditions, including exposure to moisture, while maintaining its structural integrity and operational efficiency.

The anti-block system for the impeller ensures that the pump runs smoothly without the risk of clogging or impeller blockages. This self-cleaning feature significantly reduces maintenance requirements, making the APSM60 a low-maintenance, user-friendly solution for water pumping needs.

Motor and Electrical Specifications

The motor powering the Leo APSM60 is equipped with an insulation class F, which indicates that the motor windings are capable of withstanding higher temperatures without degrading. This feature enhances the overall reliability and efficiency of the motor, especially in applications where the pump operates continuously.

The motor is housed in an IPX4-rated enclosure, which means it is protected from splashes of water and is well-suited for outdoor and damp environments. The maximum ambient temperature the motor can operate in is +50°C, making the APSM60 capable of handling a wide range of temperature conditions.

The motor also features a built-in thermal protector for single-phase operation. This protection system automatically shuts off the motor in the event of overheating, preventing damage to the pump and ensuring that it remains safe and operational over time. This thermal protection is crucial for ensuring that the motor does not fail under prolonged use or in high-temperature environments.

Another important characteristic of the motor is its low noise and long-life bearings. The bearings are designed to minimize friction, reducing operational noise and wear, which helps extend the life of the pump and ensures a quieter, more pleasant user experience.
