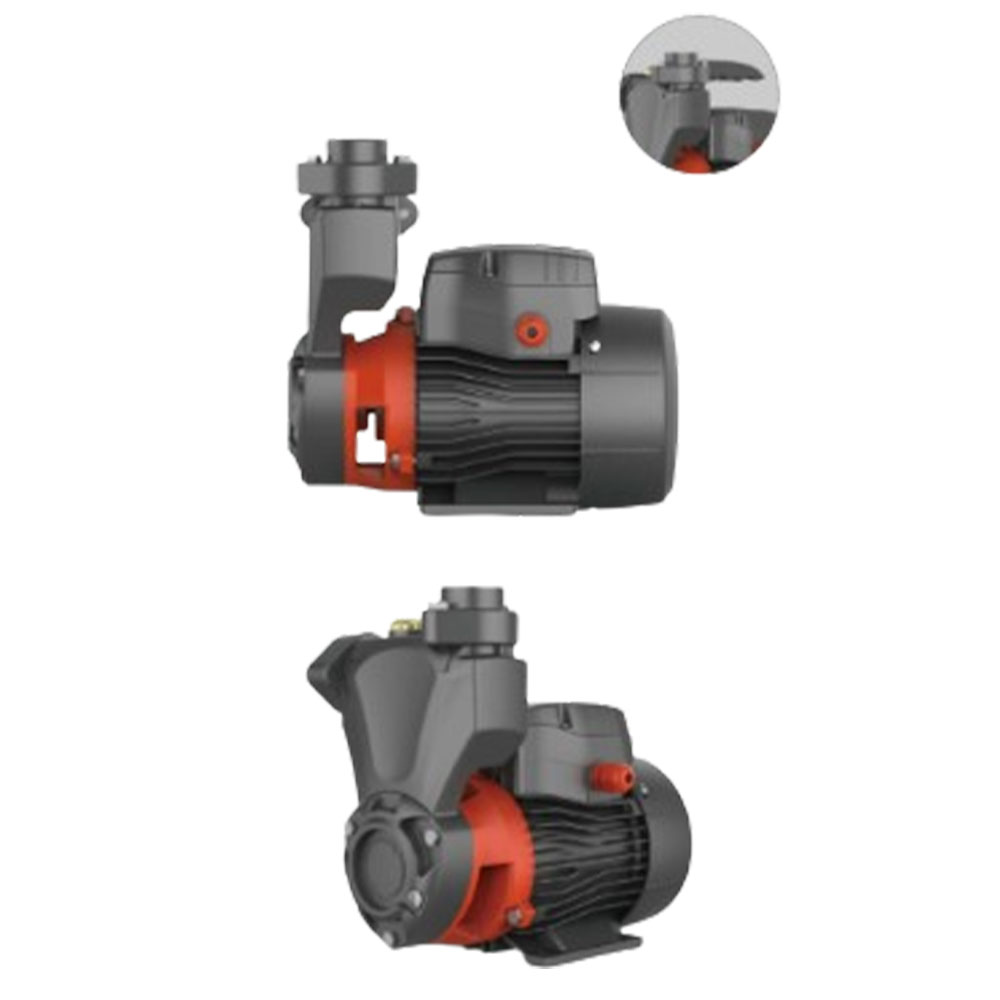

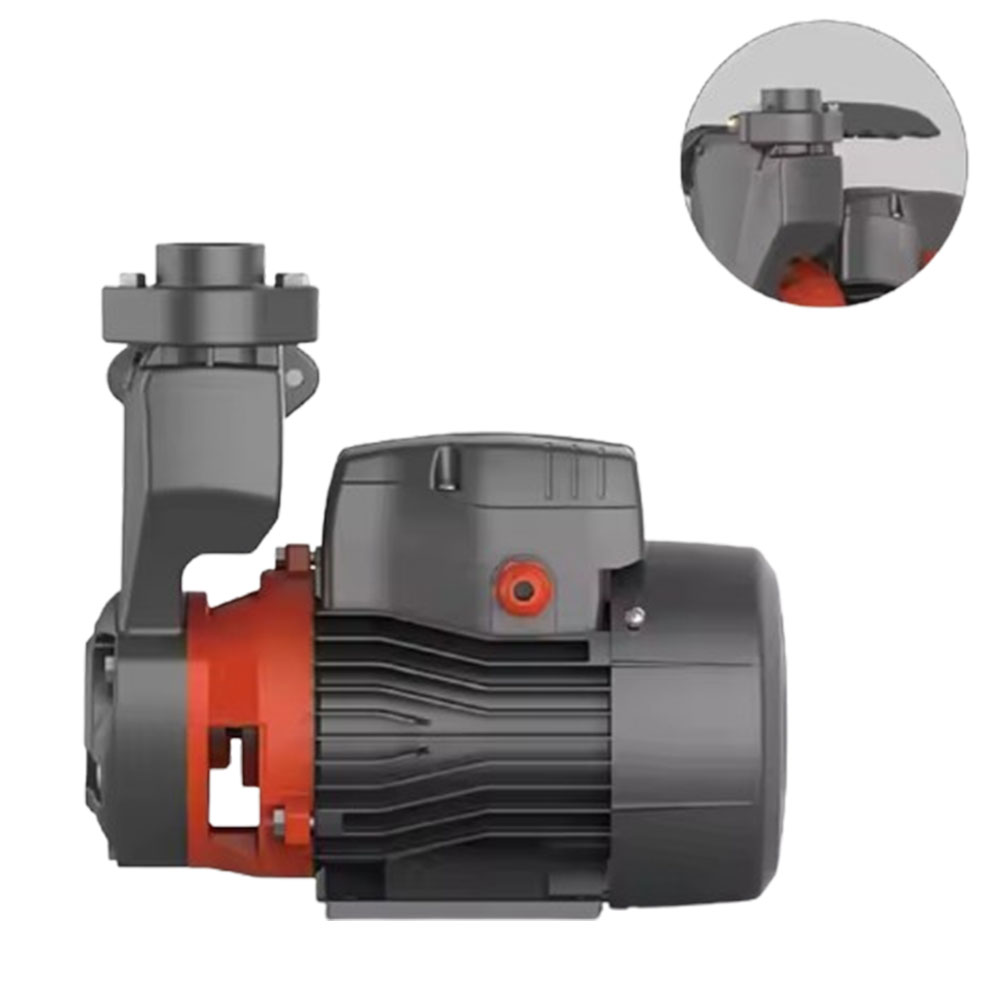

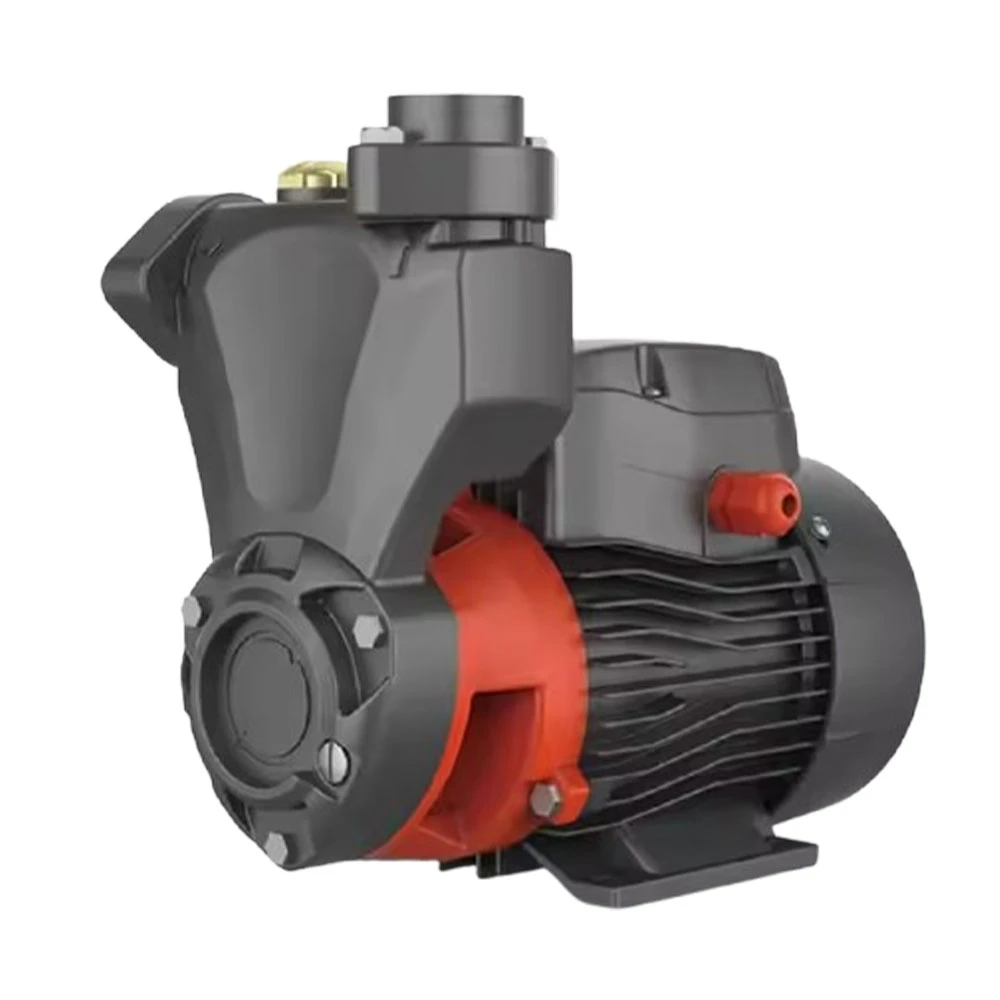

LEO APSM60 SELF-PRIMING PERIPHERAL PUMP 0.8 HP | APSM60

LEO APSM60 SELF-PRIMING PERIPHERAL PUMP 0.8 HP | APSM60

The LEO APSM60 Self-Priming Peripheral Pump is a robust, high-performance pump designed to meet the demands of residential, commercial, and industrial applications. With a focus on long-lasting durability and efficiency, the APSM60 combines advanced materials, thoughtful engineering, and exceptional functionality to deliver a reliable water transfer solution for a variety of tasks, including irrigation, water supply systems, and general-purpose fluid handling.

Key Features:

1. Self-Priming Functionality One of the standout features of the LEO APSM60 pump is its self-priming ability. This means it can automatically draw water into the pump from a lower level without the need for manual priming. This is especially useful in applications where the pump is positioned above the water source or when starting the system after an extended period of inactivity. The self-priming design makes the APSM60 ideal for both intermittent and continuous use in a wide range of environments.
2. High-Quality Materials for Durability The cast iron body and support of the pump are treated with a special anti-rust coating, ensuring a long lifespan and resistance to corrosion. This feature is particularly important for installations in areas with high humidity or exposure to water, where rusting could otherwise compromise the pump’s performance and durability.
3. Anti-Block System for Impeller Protection The LEO APSM60 is equipped with an anti-block system for the impeller, which helps prevent clogging and blockages that could disrupt the pump’s operation. This system ensures smooth operation even when dealing with slightly contaminated or particulate-laden liquids. It minimizes maintenance needs and reduces the risk of system failures, extending the pump’s service life.
4. Brass Impeller for Enhanced Efficiency The pump utilizes a brass impeller, a material known for its strength, resistance to wear, and excellent performance in both high-flow and high-pressure conditions. The use of brass in the impeller contributes to higher pump efficiency and reliability, allowing the APSM60 to handle demanding tasks without compromising on performance or longevity.
5. AISI 304 Stainless Steel Shaft The motor shaft of the APSM60 is made of AISI 304 stainless steel, offering superior strength and resistance to corrosion and wear. This material is ideal for pumps exposed to water or other fluids that may be aggressive or corrosive over time, ensuring that the shaft remains strong and unaffected by prolonged use.
6. Motor Performance and Efficiency The motor in the LEO APSM60 pump is designed for low noise and smooth operation. With long-life bearings, the motor ensures minimal friction and wear, extending the overall lifespan of the pump. The motor also features copper windings, which are known for their superior conductivity and efficiency. Copper windings reduce the chances of overheating and ensure that the pump operates at optimal performance levels for extended periods.
7. Thermal Protection for Safety The single-phase motor of the APSM60 comes with a built-in thermal protector, a safety feature that automatically shuts down the motor if it overheats due to excessive load or operation beyond its rated capacity. This safeguard prevents damage to the motor and ensures that the pump remains safe for long-term use.
8. Class F Insulation and IPX4 Enclosure The pump motor is protected by class F insulation, which ensures high resistance to heat and electrical stress. This is particularly important in demanding applications where the motor may be subjected to high temperatures. The motor’s IPX4 enclosure class means that the pump is protected from splashing water from any direction, making it suitable for use in damp or wet environments.
9. Max. Liquid Temperature and Suction Capacity The APSM60 is designed to handle liquids with temperatures up to +60°C, which allows it to operate efficiently in a variety of heating, cooling, or industrial applications. Additionally, the pump has a maximum suction capacity of 8 meters, which makes it highly effective for drawing water from considerable depths, ideal for agricultural, drainage, or wastewater applications.
10. Compact and Reliable Design At just 0.8 HP, the APSM60 is a compact and energy-efficient solution for a wide range of applications. Despite its size, it delivers impressive performance, making it an excellent choice for homeowners, small businesses, and light industrial setups. The self-priming capabilities, durable construction, and high-quality materials work together to ensure that this pump will provide reliable and long-term service, even under challenging conditions.
